Installation Instructions

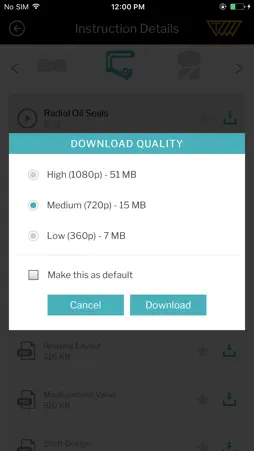

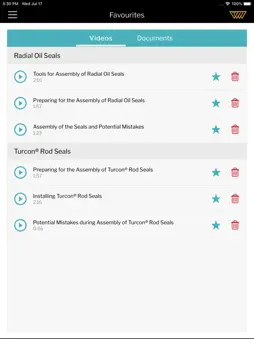

The Trelleborg Sealing Solutions Installation Instructions app helps to ensure that seals are properly installed and functioning properly. The Installation Instructions app demonstrates the correct installation techniques for a range of seals. It features a combination of film, animation and supporting documentation to give as close an experience to having the expert install the seals right in front of you. Features at a glance • Installing hydraulic seals for rod and piston with and without pre-tensioning elements • Including single- and double-acting rod and piston seals (PTFE and Polyurethane) • Installing Radial Oil Seals • Installing Mechanical Face Seals • Visual Inspection of seals, bore and shaft, including surface finishes • Common mistakes and best practice during installation • Use of assembly cones and installation tools
