Description

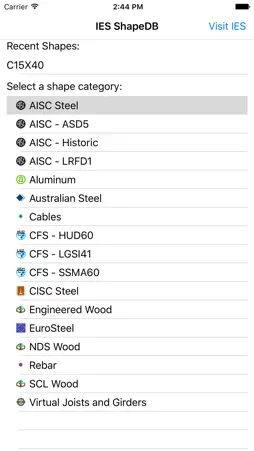

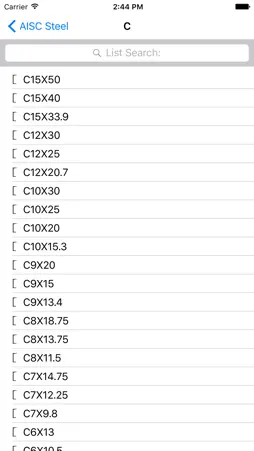

The Database contains over 18,000 structural shapes and their engineering properties. The tool can perform simple beam and column stress analysis. It is ideal for use in the field. Database shapes for the following materials • Steel: Hot Rolled and Cold Formed • Wood: Dimensional & Engineered • Aluminum • Rebar • Cables Engineering Properties • Area • Section Moduli • Inertias • Graphical dimensions Simple Beam Stress Analysis • Uniform and concentrated loading • Calculated bending stresses • AISC Steel plastic moment and brace lengths (steel sections) Column Stress Analysis • Axial loading with eccentricity • Calculated combined stresses & slenderness ratios
What's New
Version 2.0.0 2016-08-04
New Features: • AISC W and Pipe shapes have been further categorized to help with shape selection • Added N&cm and N&mm unit choices • Added ability to clear al... Technical Analysis
Package Overview Package analysis available
Bundle ID
com.iesweb.iesshapedb Current Version 2.0.0
Minimum iOS 9.3
