GCodeReader CNC

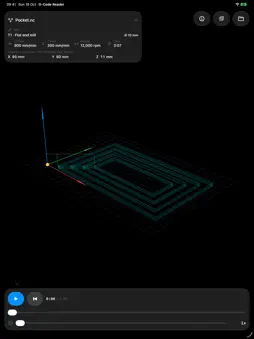

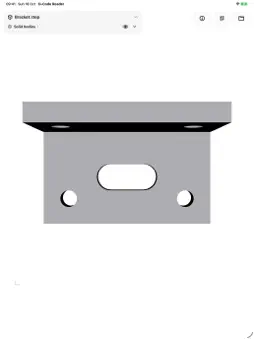

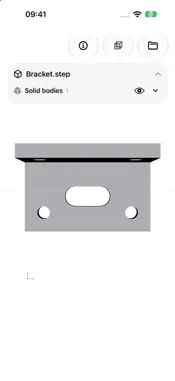

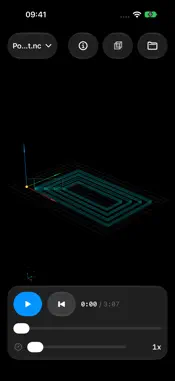

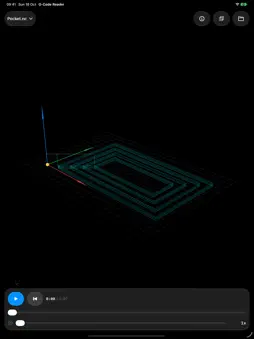

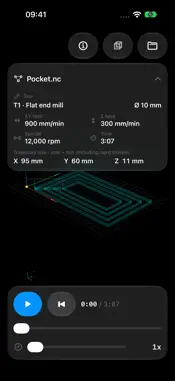

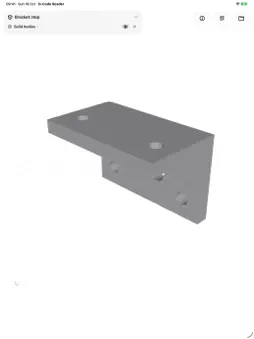

Inspect CNC toolpaths and CAD models locally on your iPhone or iPad. Open files from Files, explore geometry in 3D and review machining programs without an account or cloud conversion. SLDPRT PART VIEWING • View SLDPRT parts in 3D, including saved solid bodies, surfaces and sketch curves. • Show or hide individual bodies and surfaces. • Rotate, pan and zoom, or switch between standard views. • CAD files are opened for viewing; the original CAD file is not modified. G-CODE REVIEW • Explore 3D toolpaths with axes, a grid and view presets. • Play back a program and adjust playback speed. • Review cutter names and diameters from CAM comments, tool numbers, feed rates, spindle speed and estimated run time. • Check X, Y and Z trajectory dimensions, including rapid moves. • Collapse the program information panel to make more room for the toolpath. • Edit feed and spindle values, then explicitly save the file or export a copy. CAD AND 3D MODELS • Open STEP, IGES, BREP and DXF exchange files. • Inspect mesh and scene formats including STL, OBJ, PLY, USD/USDZ, Alembic, DAE and SCN. • View model dimensions, geometry counts and available body information. • Additional previews are available for Parasolid, DWG and CDR, with partial format coverage. FILE COMPATIBILITY SLDPRT viewing uses geometry stored in the part file. Compatibility with native formats depends on the file version and available data. SLDASM assembly import is not supported. For unsupported files, export to STEP, IGES, STL or DXF in the authoring application. LOCAL WORKFLOW Selected files are processed on your device. No sign-in or upload to a conversion service is required. Privacy information and third-party licenses are available from the information button inside the app. Estimated CNC run time is an approximation. Review any edited program before using it on a machine.
