BIM 360 Layout

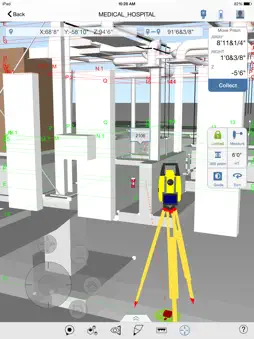

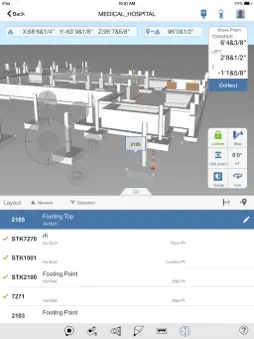

The Autodesk® BIM 360™ Layout app for iOS and BIM 360™ web service provide vertical construction contractors the ability to connect the coordinated model to the field layout process, helping to increase job site productivity while improving the accuracy of staked or installed building components. The app synchronizes with your BIM 360 account to download and upload project models with point location coordinate detail. Once paired with a total station, BIM 360 Layout on your iPad™ guides the user to the exact location of those points on the job site for field staking and/or location verification activities. NOTE: The BIM 360 Layout app is currently directly compatible with the following positioning hardware: Topcon LN-100 3D Layout Navigator, Topcon DS-200i, Leica iCON robot 60, and Leica iCON robot 50. NOTE: The BIM 360 Layout app is currently compatible with the following positioning hardware when used in conjunction with a compatible BT Bridging device: Topcon LN-150 3D Layout Navigator, Topcon DS-200i/DS-200, Topcon GT and PS series, Sokkia SX and IX series, and Leica iCON robots 50, 60,70, and 80. ______________________ Share and Collaborate ◆ Share and assign layout points from within BIM 360 Glue Web to the BIM 360 Layout app ◆ Models and point data can be downloaded for offline use in the field ◆ Sync and share collected/as-built points from the app in the field with BIM 360 Glue web ◆ Upload models with layout points created in Autodesk Point Layout directly from AutoCAD, Revit and Navisworks into BIM360 Glue and sync with the BIM 360 Layout app Robotic Total Station Controller ◆ Seamless connection to total station hardware ◆ Control the total station remotely utilizing guide and point-turn functionality ◆ Step-by-step, guided total station set-up routine including coach marks for each feature User Interface and Navigation ◆ Select level and location in 2D, navigate directly to that location in 3D model view ◆ First person—immersive view of the building model as the user walks the jobsite ◆ Optimized views to see total station, prism, selected point and auto-zoom 2D & 3D viewing modes when nearing a point ______________________ Autodesk BIM 360 Layout mobile app is licensed under the following License and Services Agreement. Your download and/or use of the Autodesk BIM 360 Layout mobile app shall serve as your acknowledgement to the terms of this License and Services Agreement with respect to your use of the Autodesk BIM 360 Layout mobile app. Requirements: Requires iOS 12 or later.
